Forane® R-516A
Forane® R-516A is a very-low GWP (<150), azeotropic (zero glide), A2L (mildly flammable) refrigerant blend. R-516A's properties very closely match R-134a. Forane® 516A has good compatibility with existing system components for R-134a or R-1234yf. Forane® 516A is a design compatible replacement for R-134a in new systems including medium temperature refrigeration,
chillers, heat pumps, and air-conditioners.
- Asia Pacific
- Australia
- Europe
- Latin America and the Caribbean
- North America
-
Forane® R-516A Technical Data Sheet
Blend: R-1234yf, R-134a, and R-152a
Common name : R-516A
Latest news
Following Arkema’s recent $60M investment in its Calvert City, Ky., manufacturing site, ...
Arkema Completes Forane® 1233ZD Production Unit In KENTUCKY; Expanding Global Capacity
Arkema announces today the ribbon cutting of the Forane® Foam Blowing Agent (FBA) 1233zd ...
Arkema Business Manager Shares A2Ls Tips for HVACR Techs in ACHR News
Scot Swan gave some advice for HVACR techs at AHR Expo last month.

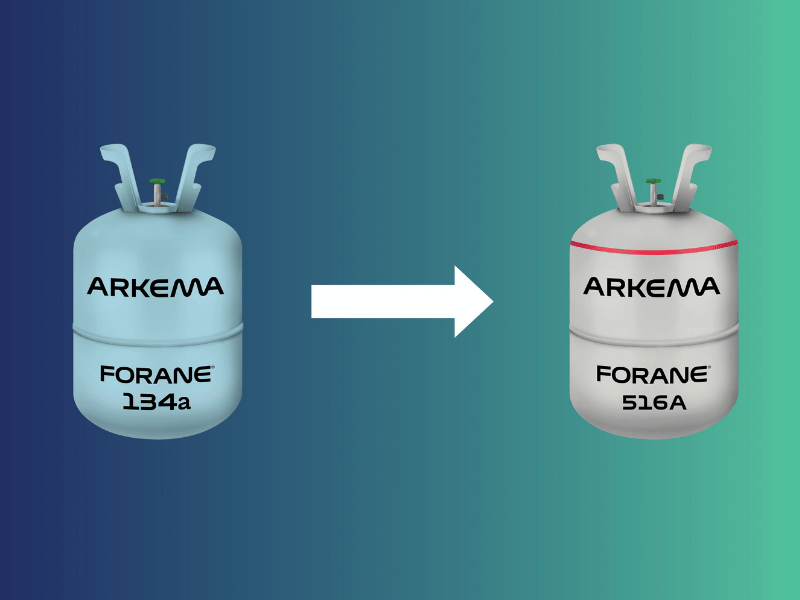

Forane® R-516A is an ultra low GWP alternative to R-134a.
Slightly flammable (A2L according to the ASHRAE 34), Forane® R-516A can be used in...
Effective Forane® R-32 GWP (AR4) is 150.
Applications
Forane® 516A can be used for...
Forane® R-516A basic properties:
Safety |
|
|---|---|
| ASHRAE Standard 34 classification | A2L |
| Global Warming Potential (AR4/5) | 142 |
| Ozone Depletion Potential | 0 |
Thermodynamics |
|
|---|---|
| Normal boiling temperature (°C) | -29.4° |
| Critical temperature (°C) | |
| Critical pressure (bar abs) | |
| Saturated liquid density at 40°C (kg/m3) | |
| Saturated vapor density at -18°C (kg/m3) | |
