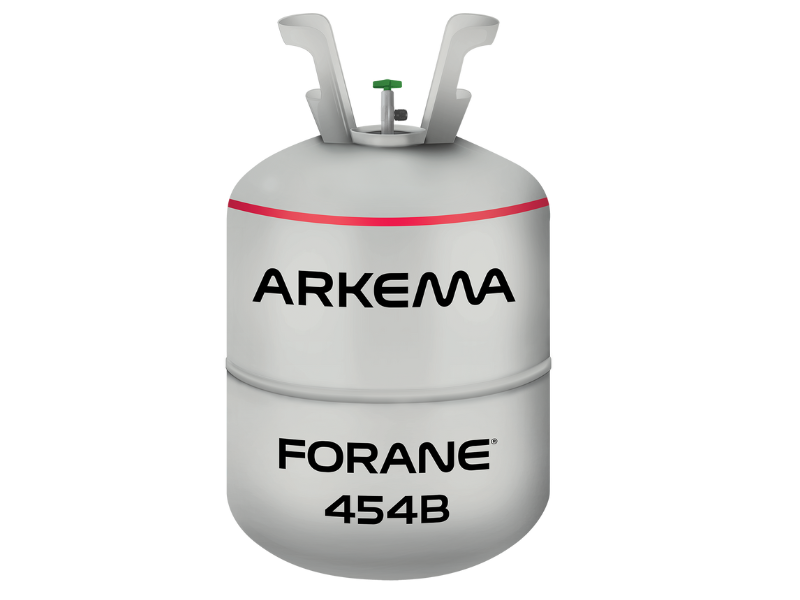

Forane® 454B (R-454B)
Forane® 454B (R-454B) is a low GWP, A2L (mildly flammable), HFO replacement for R-410A in new air conditioning or heat pump applications. Its pressures and temperatures match closely those of R-410A.
- Asia Pacific
- Australia
- Europe
- Latin America and the Caribbean
- Northern America
Chemical name / blend: Difluoromethane (HFC-32) / 2,3,3,3 Tetrafluoropropene (HFO-1234yf)
Common name : R-454B
Latest news
Arkema Business Manager Shares A2Ls Tips for HVACR Techs in ACHR News
Scot Swan gave some advice for HVACR techs at AHR Expo last month.
Arkema Sponsors SPFA National Industry Excellence Awards
The Forane® Foam team recently sponsored the National Industry Excellence Awards.
New Regulations On Refrigerants In California & New York Effective in 2025
California (CA SB1206) and NY have introduced a new laws that will ban the use of higher GWP ...
Forane® 454B (R-454B) is a low GWP replacement for R-410A.
Forane® 454B (R-454B) is a blend of hydrofluoroolefin (HFO) R-1234yf and hydrofluorocarbon (HFC) R-32 designed to meet the demand for lower Global Warming Potential (GWP) refrigerant technology to replace legacy refrigerants like R-410A.
Forane® 454B (R-454B) and Forane® 32 are the only replacements for R-410A that meet the <700 GWP requirements for regulations like the United States' AIM Act.
Where can Forane® 454B (R-454B) be used?
Forane® 454B (R-454B) can be used in:
- Residential and light commercial air conditioners (AC) and heat pumps
- Window units and portable AC
- Mini-split, multi-split and ducted-split units
- Packaged terminal air conditioners (PTACs)
- Direct expansion (DX) and central fugal chillers
What are the benefits of Forane® 454B (R-454B)?
Forane® 454B (R-454B) closely matches the thermodynamic properties of R-410A.
This makes it possible to use many of the same, or very similar, components that were used in R-410A systems.
The use of Forane® 454B (R-454B), an A2L or mildly flammable refrigerant, may necessitate the adoption of features such as leak detection, use of non-sparking controls and switches and other changes depending on the size of the charge, the specific application and local codes.
- Forane® R-454B has an low GWP of 466 - a 78% reduction compared to R-410A.
- Forane® R-454B has no ozone depletion potential (ODP).
- Forane® R-454B has low toxicity.
- Forane® R-454B is an A2L, meaning it's mildly flammable and its flammability is close to that of an A1 refrigerant.
Forane® R-454B is not a a retrofit and should not be used in R-410A equipment.
What are the basic properties of Forane® 454B (R-454B)?
Safety |
|
|---|---|
| ASHRAE Standard 34 classification | A2L |
| Global Warming Potential (AR4) | 466 |
| Ozone Depletion Potential | 0 |
Thermodynamics |
|
|---|---|
| Normal boiling temperature (°C) | -50.5˚C |
| Critical temperature (°C) | 78.1˚C |
| Critical pressure (bar abs) | 52.7 bar |
| Saturated liquid density at 25°C (kg/m3) | 984.6 |
| Saturated vapor density at NBT (kg/m3) | 3.4 |
